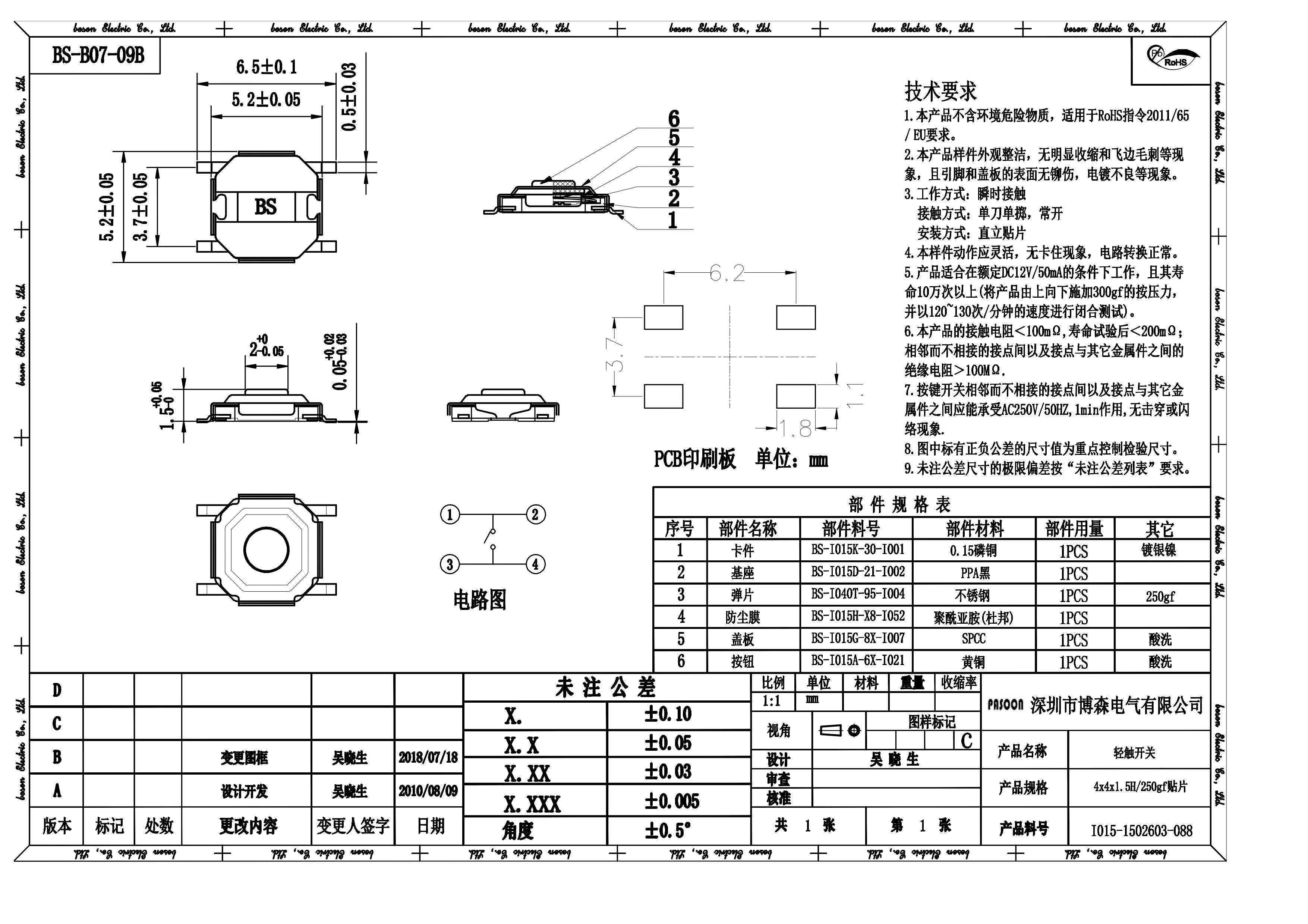

I015-1502603-088

main specifications
project                         standard
Rated current                50mA.12DC
Insulation resistance       100MΩ MIN 100V DC
Dielectric strength          250V AC for 1min
Contact impedance         50mΩ MAX
Woking temperature       -30℃ to +85℃

number1	Click to view pdf
number2	Click to view pdf
number3	Click to view pdf
number4	Click to view pdf
number5	Click to view pdf

Packing size
